IPS Security

Navigation: Security Profiles

Configure and manage ips security settings in the TOORCE Firewall admin panel.

IPS Security

Add / Edit forms

Click + Add New to open the creation dialog, or Edit on an existing row to modify a record.

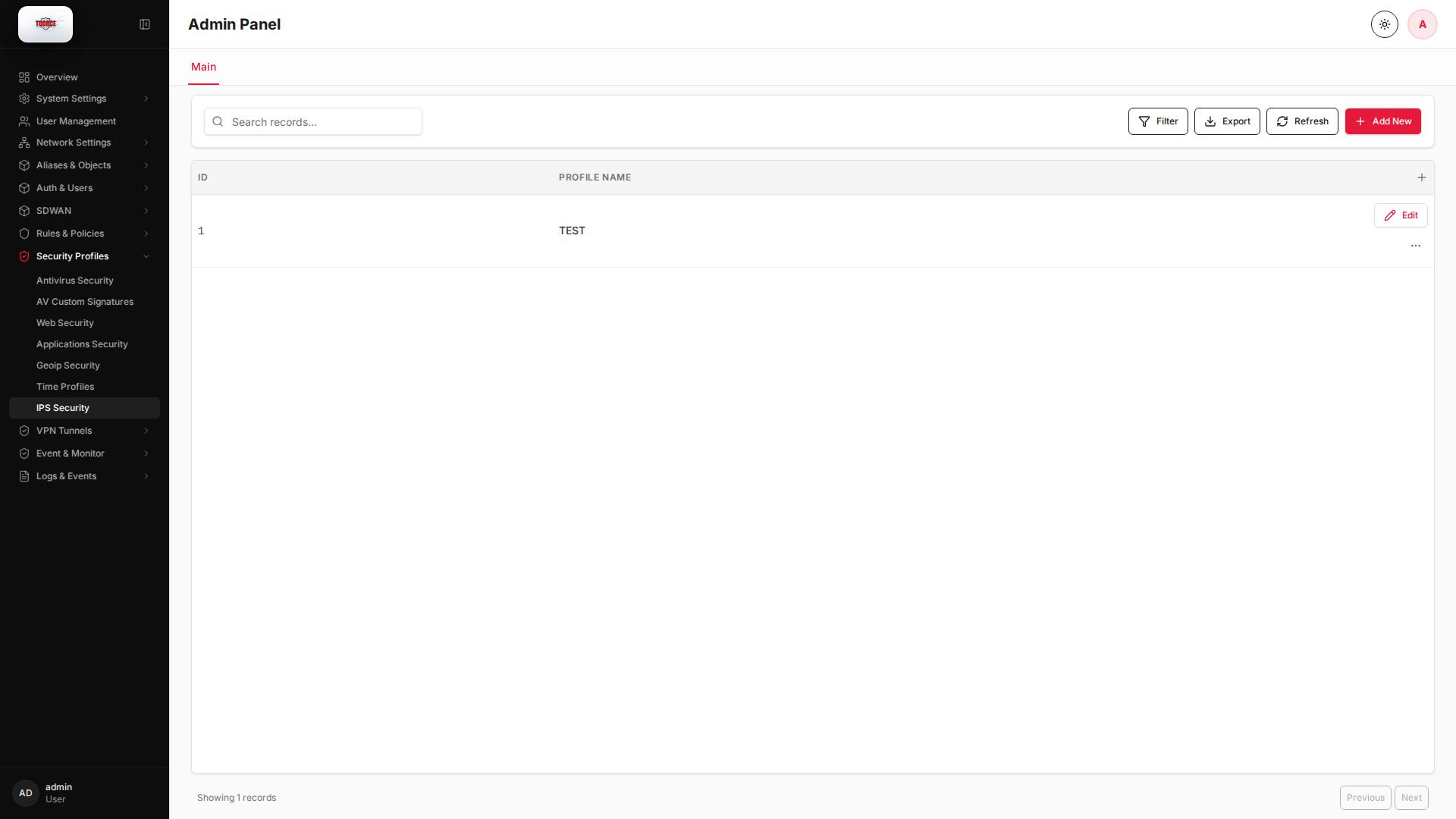

List view

List view

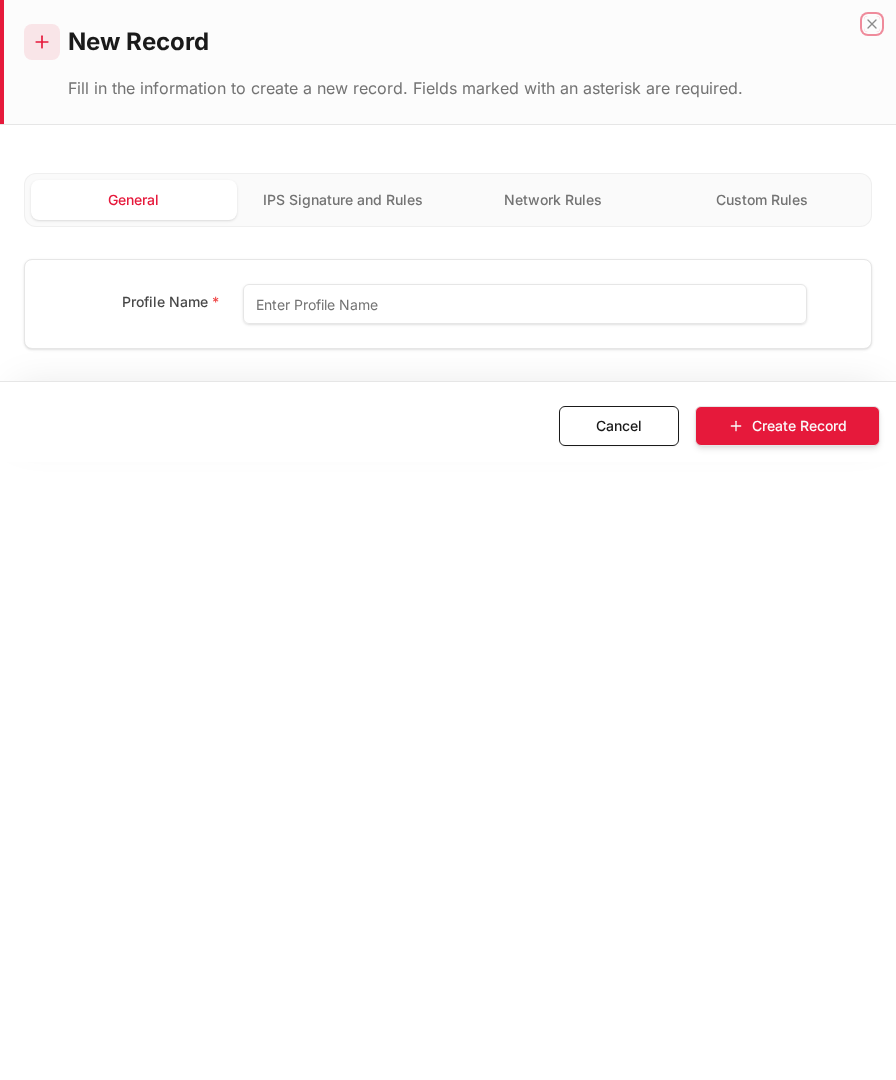

Add form

Empty form after clicking + Add New:

Add form — empty

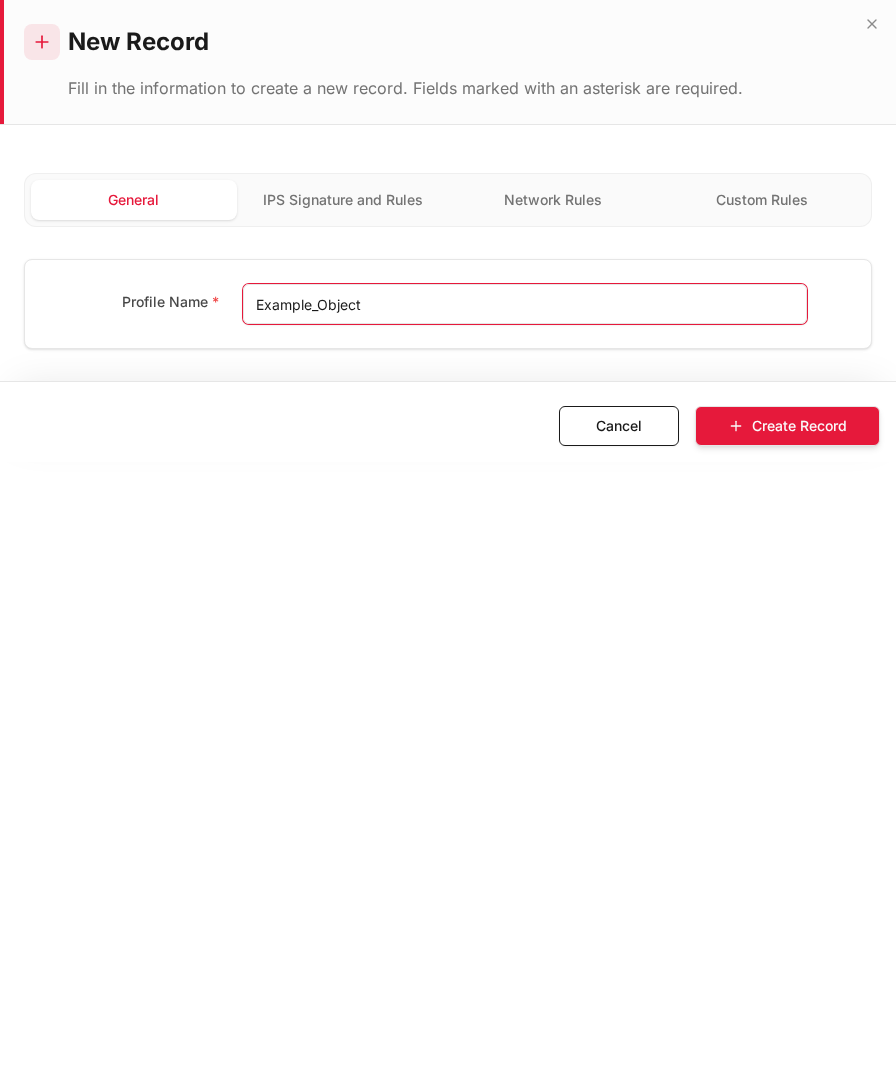

Same form filled with example data (do not save in production):

Add form — filled

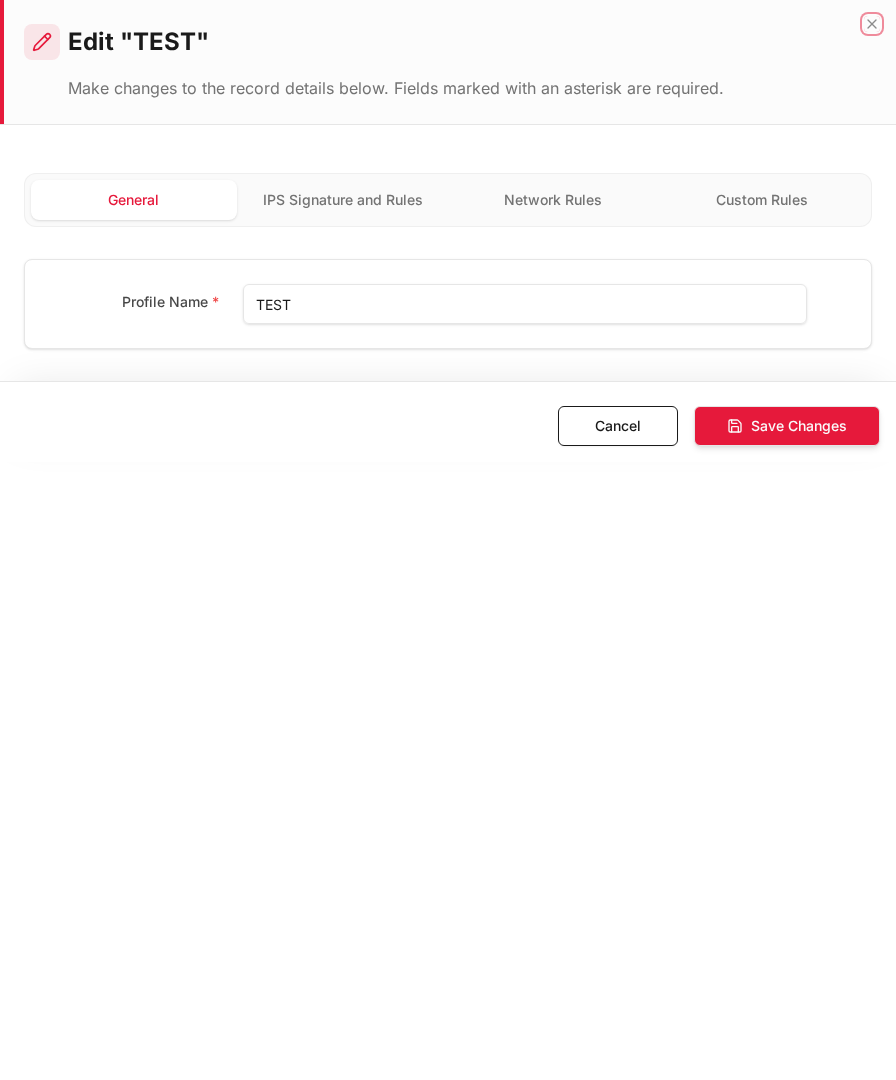

Edit form

Existing record opened with Edit:

Edit form

Form fields explained

Dialog title: New Record — IPS Profile

Field Required Description Example value
Profile Name Yes Name referenced in inline rules Default_IPS
Ruleset Yes Snort ruleset severity level Balanced
Default Action Yes Alert, drop, or reject on match Drop
Block offenders No Temporarily block repeat offenders Enabled

Technical background

Intrusion Prevention System (IPS)

IPS uses signature-based detection (Snort rules) to identify exploits, port scans, malware C2 traffic, and protocol anomalies in real time. TOORCE runs Snort on NFQUEUE for inline packet inspection.

IPS actions

Action Behavior
Alert Log the event, allow traffic
Drop Block the packet/connection
Reject Block and send RST to both sides

Signature identifiers

Each Snort rule has a GID (generator ID) and SID (signature ID). Custom rules can be added via AV Custom Signatures and IPS event rulesets.

Security relevance

IPS provides virtual patching — protecting vulnerable services (e.g. mail server on port 25) against known exploits before OS patches are applied.

Available actions

Table columns
